Anatomy Spotlight: Septopulmonary Bundle – Why Roof Lines Fail and PVs Reconnect

Key concept

• Endocardial & Epicardial activation can be electrically dissociated due to functional block from disparate endo-epi fibre orientation, sink source mismatch & intramural fibrosis & fat pads physically separating the layers. They are connected to one another through discrete endo-epi connections that allow epicardial conduction to bypass endocardial (non-transmural) ablation lines.

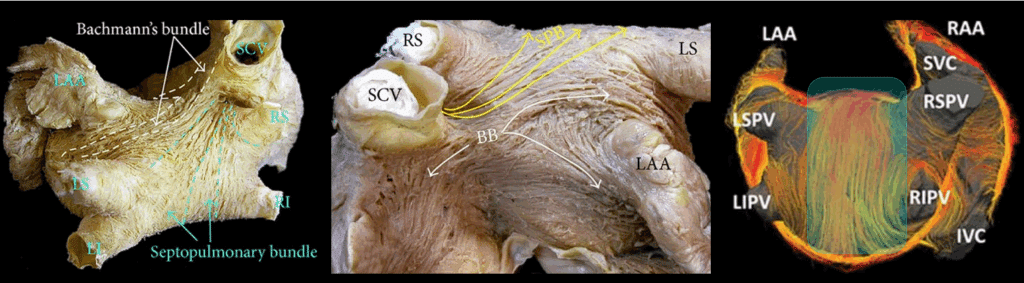

Anatomy of the Septopulmonary bundle?

• Septopulmonary bundle is a thick muscular band on the epicardial surface of the LA. It’s thick muscular fibres traverses & drapes over the epicardial aspect of the entire posterior wall and inserts into the antral posterior aspect of the RSPV & Right Carina.



• It often has endocardial connections to the endocardial LA posterior wall and right-sided veins and can sometimes require extensive endocardial ablation to isolate.



Sánchez-Quintana D, Doblado-Calatrava M, Cabrera JA, Macías Y, Saremi F. Biomed Res Int. 2015;2015:547364.
Sánchez-Quintana D, López-Mínguez JR, Macías Y, Cabrera JA, Saremi F. Cardiol Res Pract. 2014;2014:289720.
Garcia F, Enriquez A, Arroyo A, Supple G, Marchlinski F, Saenz L. J Cardiovasc Electrophysiol. 2019;30(7):1159–1163

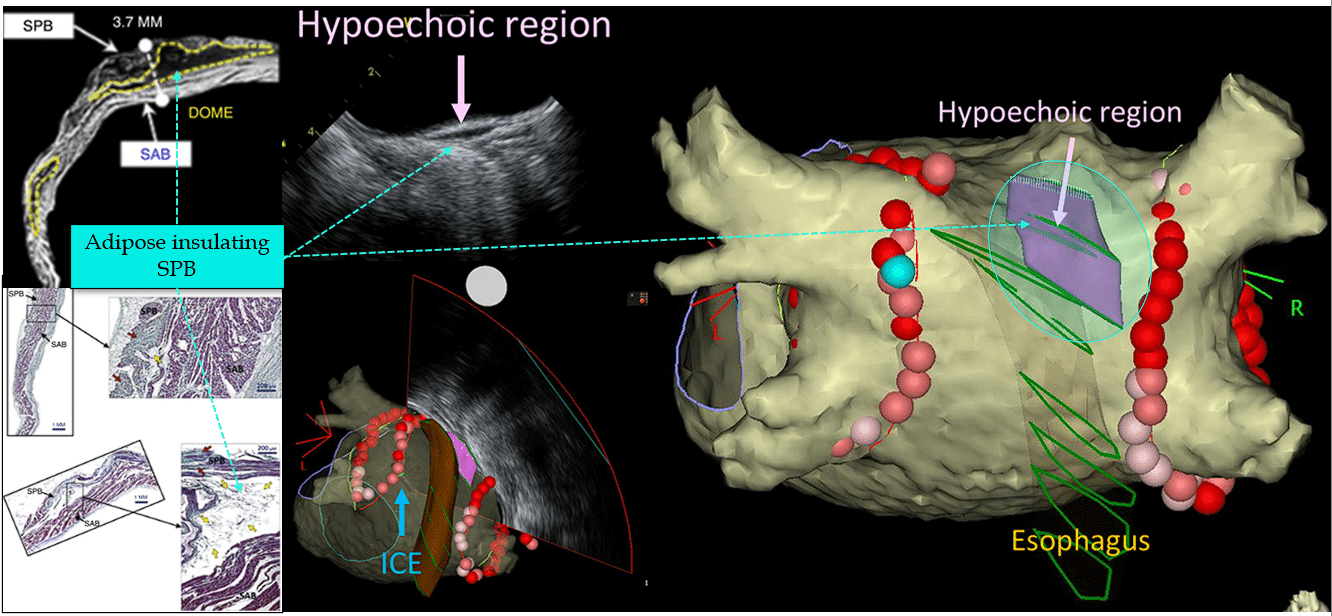

Septopulmonary Ablation Challenges

• Thermal (and possibly PFA) ablation lesions often fail to permanently injure the SPB due to interposing intramural fat-pads (and fibrosis associated with atrial disease) which insulate the septopulmonary bundle from ablation.



Hasebe Y, Noda T, Nakano M, et al. Heart Rhythm O2. 2024;6(1):3–10.
Pambrun T, Duchateau J, Delgove A, et al.Heart Rhythm. 2021;18:349–357.



How does the Septopulmonary bundle contribute to recurrence?

Pulmonary vein reconnection

• 60% of PVI patients do not have isolated veins on remapping procedures. Yes, you read that right, 60% have at least 1 pulmonary vein reconnected.



• About 60% of the reconnections are located in the right sided veins. Mechanisms likely include SPB epicardial bridging and carina/ostial endocardial gaps.

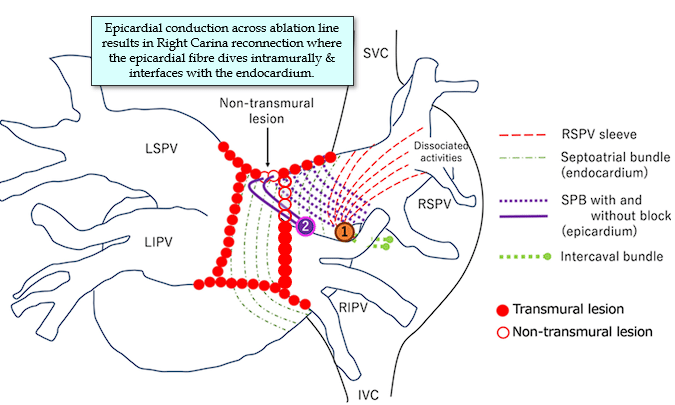

  • (You may have noticed that right-carina gaps are common on remap – these are often caused by our old friend the SPB).





Roof & Posterior wall recurrence

• Case series suggest the majority of roof-line recurrences are due to epicardial bridging consistent with SPB conduction.



• In the Australian study CAPLA, 75% of Posterior walls had recovered in patients who re-presented for a redo procedure. This highlights the difficulty in achieving enduring posterior wall isolation and is often due to septopulmonary conduction.



• • This actually highlights a great discussion point when interpreting the results of CAPLA & the impact of Posterior Wall isolation. I have a deep dive into posterior wall isolation in a future BeatBox coming up.















Kobayashi A, Hasebe H, Yoshida K. J Arrhythm. 2024;40(3):624–628.

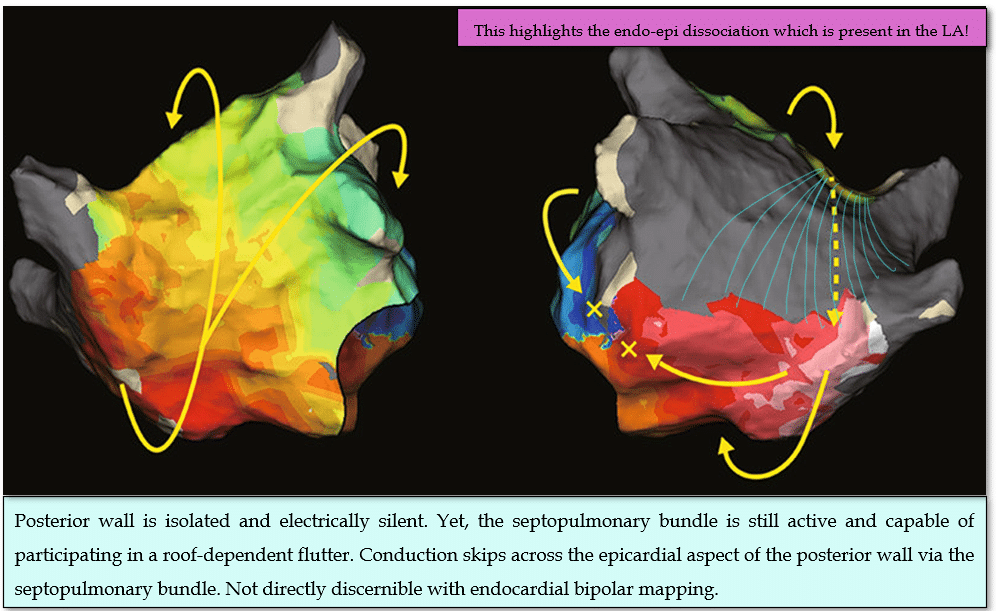

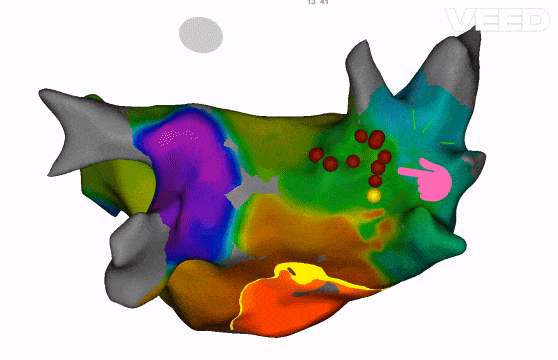

More Examples of Septopulmonary conduction

The below examples highlight three things:

1. Thermal ablation (and possibly PFA) may fail to durably injure epicardial structures such as the SPB.

2. Our mapping catheters only map the endocardial regions and are poor at detecting epicardial recovery or conduction.

3. The endocardium & epicardium are electrically dissociated and it is possible to have a  silent posterior wall with intact epicardial conduction contributing to arrhythmia recurrence.



Ishimura M, Yamamoto K, Yamamoto M, Himi T, Kobayashi Y. Ann Noninvasive Electrocardiol. 2023;28(1):e12997.



My two Cents

• The endocardium & epicardium can be electrically isolated with discrete focal locations of endo-epi connections.



• The septopulmonary bundle is a thick muscular band of fibres draping across the LA roof & posterior wall and is a major contributor to posterior wall and right carina/vein reconnection.



• The SPB may be transiently injured in the initial procedure, but recover conduction due to inadequate endocardial ablation penetrance due to tissue thickness & intramural fibrosis & fat pads insulating epicardial structures from ablation.

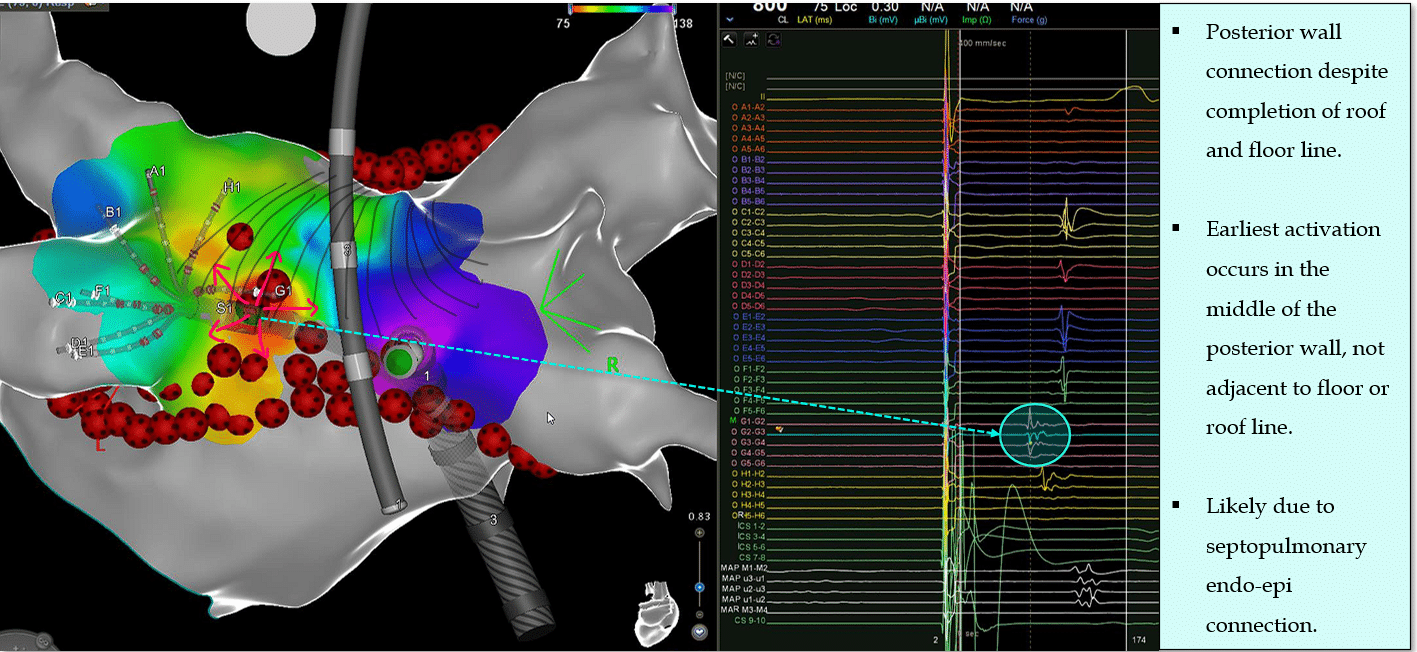

• Many posterior wall & right sided vein reconnections are due to endo-epi connections from the septopulmonary bundle, explaining why the earliest site may be remote from previous ablation lines.



• The septopulmonary bundle can participate in atypical flutters, even in the setting of enduring endocardial posterior wall isolation.



• Awareness of the septopulmonary bundle anatomy is critical in the setting of any PVI & posterior wall isolation procedure.



Thanks for tuning in :)
Cheers
Mitch & CPiP Team
