Sudden changes when Pacemapping locates the critical isthmus site in VT Ablation

The Basic concepts of pacemapping in Scar-VT:

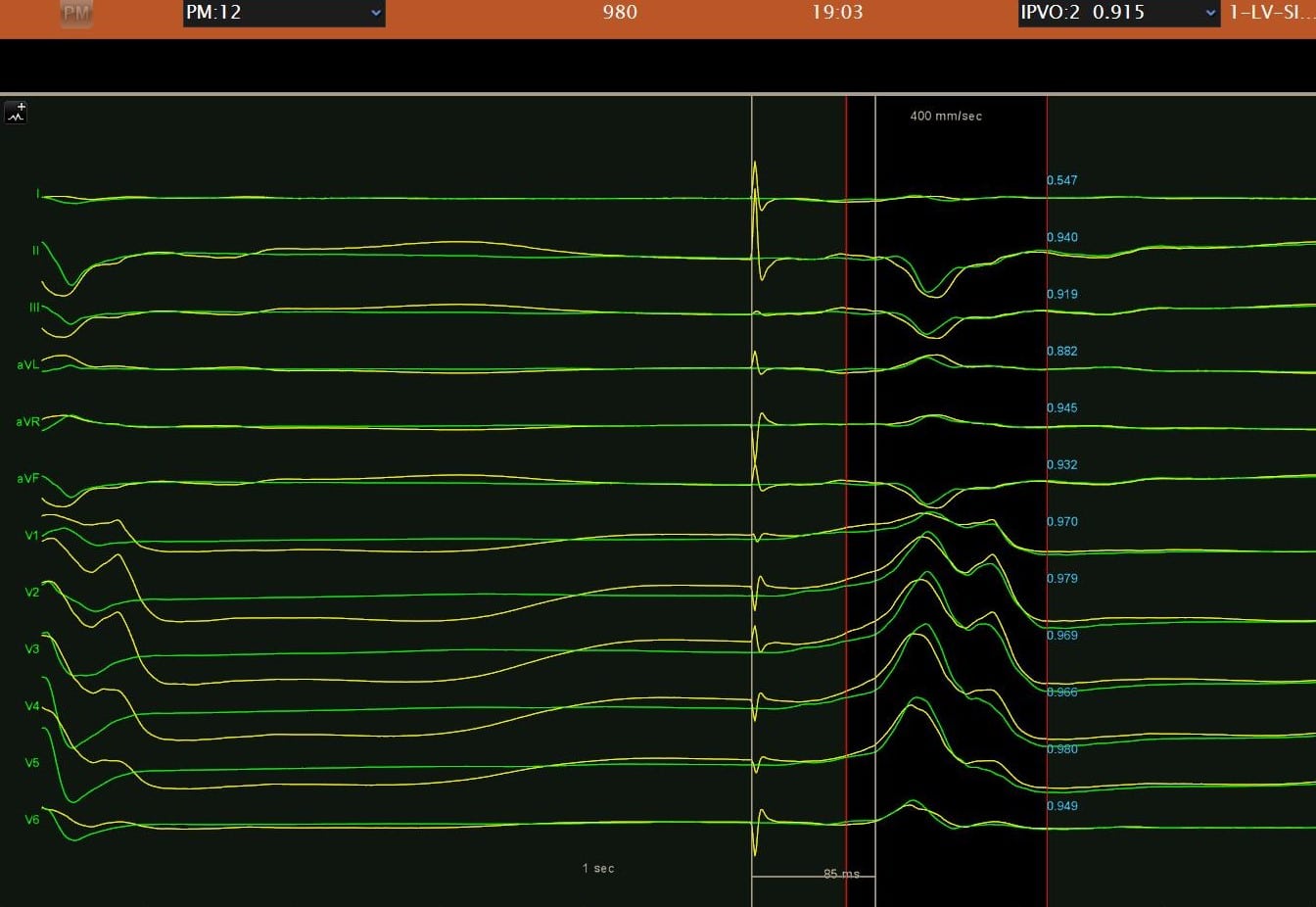

• Identifying pacemap QRS morphologies with a high correlation (>95%) to the VT morphology indicates you are pacing from the exit site.



• Both an adjacent bystander and critical isthmus site may display:
  • Long stim-QRS
  • High correlation to VT morphology



What will be discussed here:

• Sudden changes in paced morphologies in two anatomically adjacent sites predicts an endocardial critical isthmus site.



• Centrifugal patterns of pace-map correlations indicate an intramural circuit.



These factors inform ablation strategy

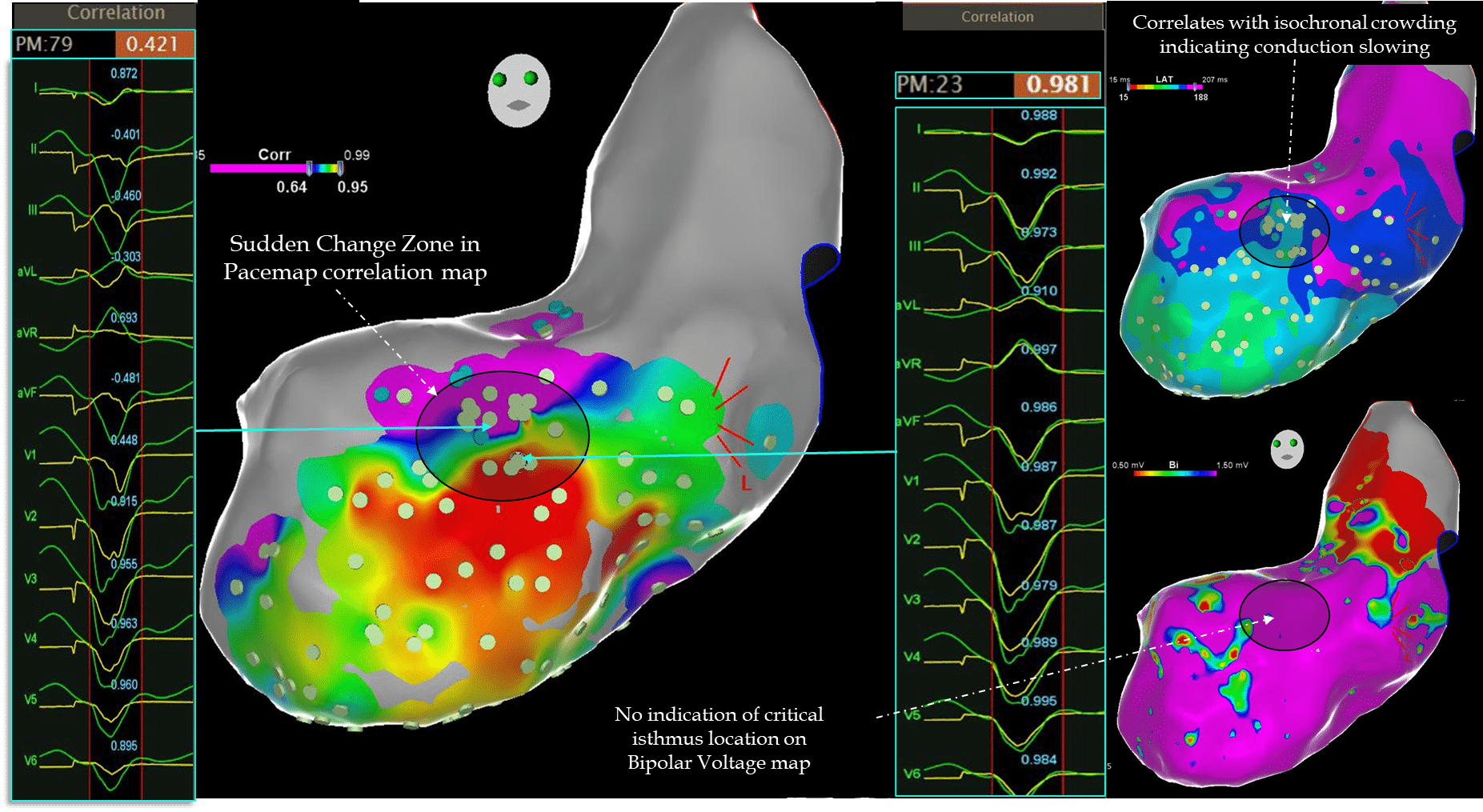

An example of a “Sudden Change” in Pacemap Morphology



Key Concept!

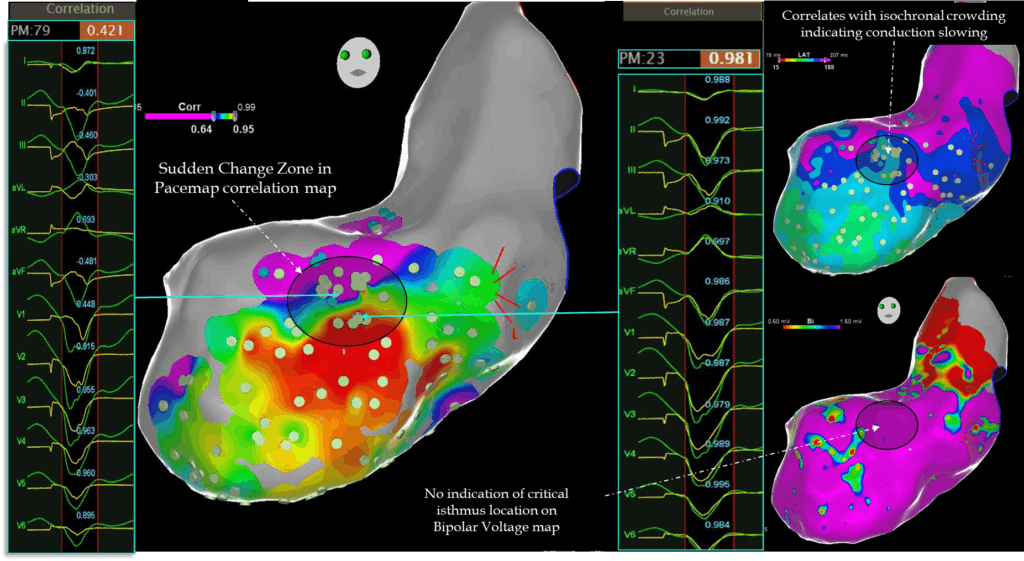

• An abrupt 30% change in pacing correlation from a good pacemap to a poor pacemap correlates with a specifically endocardial diastolic isthmus sites critical for maintaining VT re-entry circuits.





Why does a sudden change pattern correlate with an endocardial isthmus site?



No sudden change = No Isthmus site :(

• If an abrupt change pattern is not seen, then you will likely obtain a “centrifugal pattern” of pacemap correlation (example below).



• • The pacemap correlation gradually becomes worse as you pace further from the exit site in all directions.



• A centrifugal pacemap correlation map indicates an intramural or epicardial isthmus site (when performing pacemapping from the endocardium).

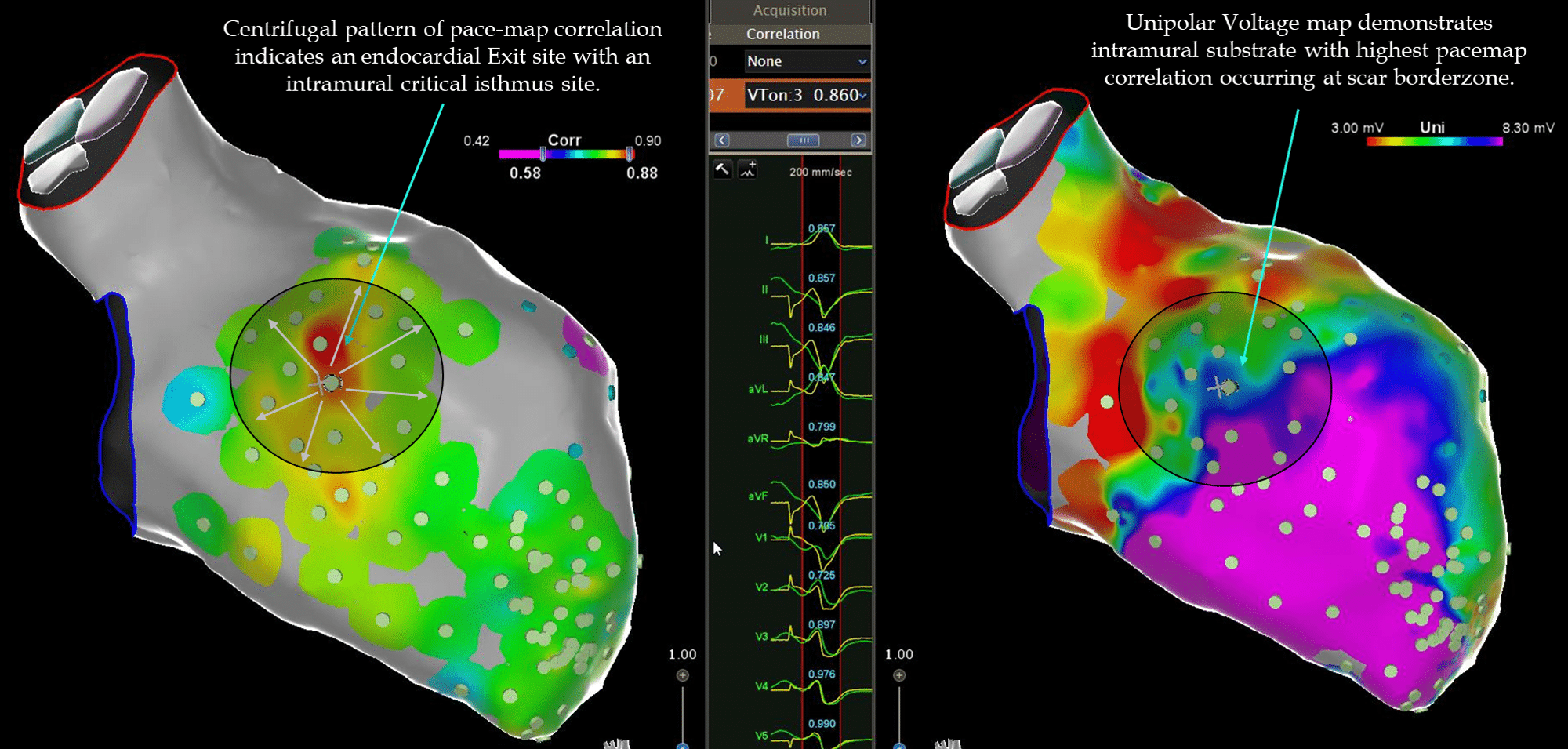

An example of a centrifugal pattern of pacemap correlations is demonstrated in the example below, where the VT isthmus site was intramurally located.



My Two Cents:

• VT is often a 3-dimnentional re-entrant circuit involving the intramural substrate.



• In my opinion, in many centres, pacemapping is both underutilised & underappreciated in scar VT ablations.
  • It can reliably identify endocardial critical isthmus sites in unstable VT, or indicate the presence of an intramural circuit.



• A sudden change in pacemap morphology (>30% correlation) from good to bad pace-map at two anatomically adjacent sites strongly correlates with the location of an endocardial critical diastolic isthmus site.



• In contrast, a centrifugal pattern of gradually poorer pace-map morphology indicates an intramural critical isthmus site and possibly a more difficult endocardial ablation.



Thanks for tuning in :)
Cheers
Mitch & CPiP Team
